Randy's 50 Ford Woodie Front Suspension

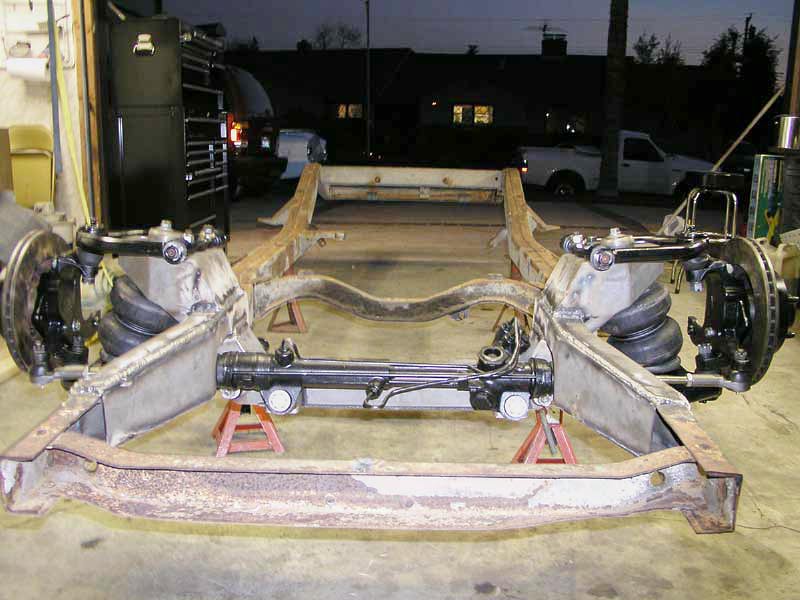

I was forced to tilt the shock towers out a little to accommodate the air spring
suspension on the TCI control arms.




A view of the left side.  I will place the shock mount after the body is back on.
Also notice that the air bag is mounted in the original holes on the lower control arm.
I'm a little nervous about the steep angle but I was also concerned that moving the
mounting point inboard would reduce the lifting capacity of the air bags.  Now I
have options.



Next up is sandblasting and rear end suspension.

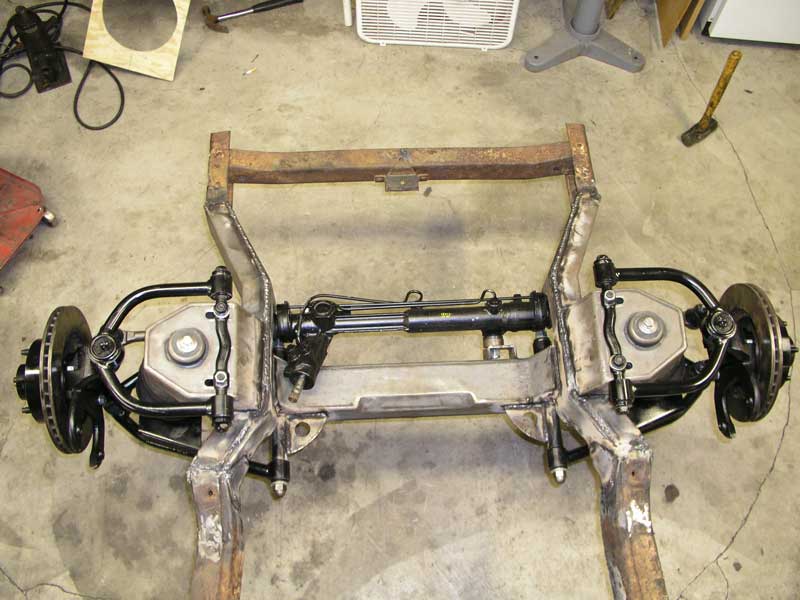

Looks like it can do the job.  Hope I can align it!
